Provides a simple and convenient way to connect and operate a scintillator-photodiode detector or a silicon detector.

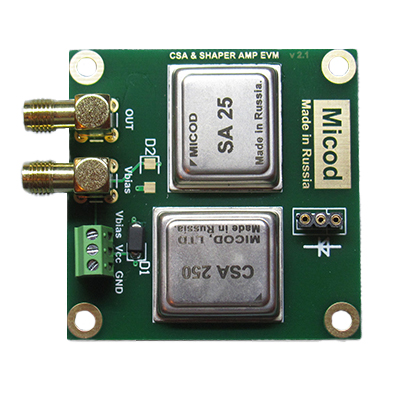

Evaluation board for the CSA-250 or α-CSA charge-sensitive amplifier and the SA-25 shaping amplifier.
Supply voltage: +5 V;
Current consumption: approximately 2 mA;
PCB dimensions: 50 × 50 mm.

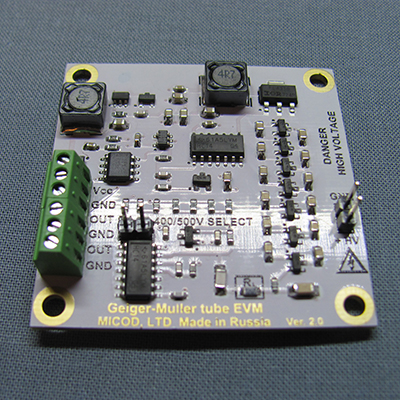

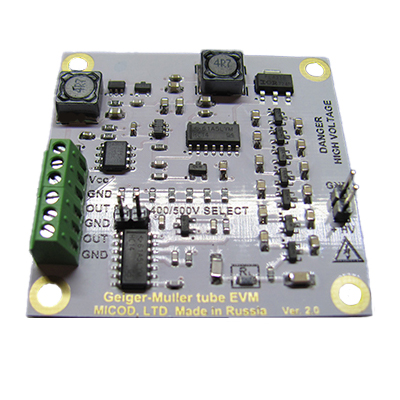

Evaluation module for Geiger-Mueller tubes featuring a low-power high-voltage converter and pulse output.
Supply voltage: 1.5 V to 5 V;
Current consumption: 100 µA;
Integrated DC-DC converter and 5 V auxiliary output for peripheral circuitry;
Selectable 400 V or 500 V output;
Pulse width: 1 µs or 10 µs; output level: 5 V;
Arduino-compatible; supports most Geiger-Mueller tubes.

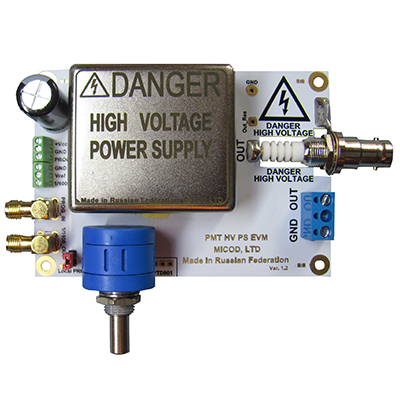

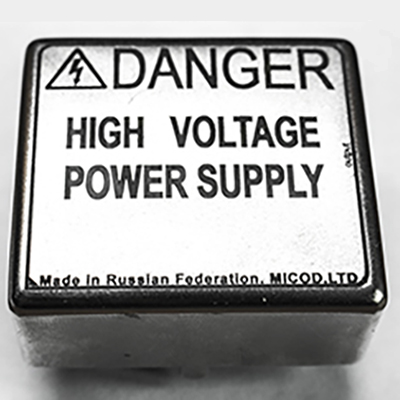

The module requires only a supply voltage for operation. The output voltage is adjusted using an onboard multi-turn potentiometer.
Maximum output voltage: −2500 V or +2500 V;
Supply voltage: +4.5 V to +12 V;
Sealed metal package;
Dimensions: 50 × 45 × 20 mm.

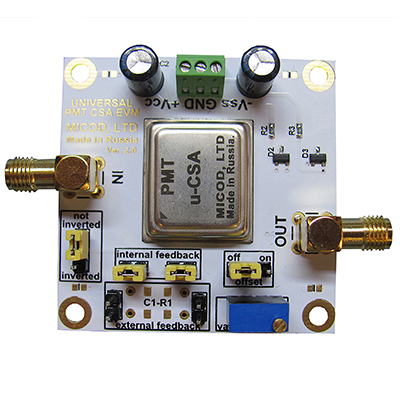

Provides a flexible interface for virtually any PMT-based detector.
Input polarity: positive or negative;
Selectable output polarity;
Internal or external feedback;
Adjustable DC output offset;
PCB dimensions: 50 × 50 mm.

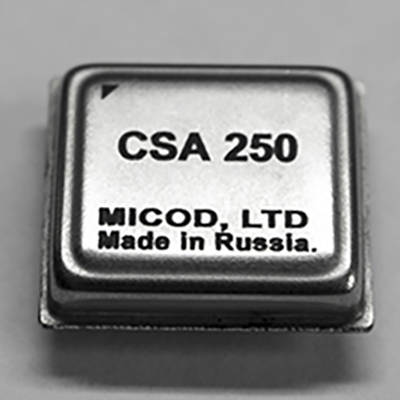

Compact charge-sensitive amplifier module for scintillator-photodiode detector assemblies.
Supply voltage: +5 V;
Current consumption: ~1 mA;
Hermetic metal-glass package;
Dimensions: 22 × 19 × 5 mm.

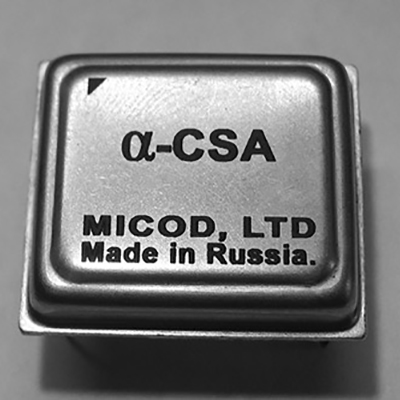

Charge-sensitive amplifier for semiconductor detectors and high-energy scintillator-photodiode detectors.
Supply voltage: +5 V;
Current consumption: ~1 mA;
Hermetic metal-glass package;
Dimensions: 22 × 19 × 5 mm;
Difference from CSA-250: Cf = 1 pF, Rf = 100 MΩ.
Pulse-shaping amplifier for detector signal conditioning.
Supply voltage: +5 V;
Current consumption: ~1 mA;
Hermetic metal-glass package;
Dimensions: 22 × 19 × 5 mm.

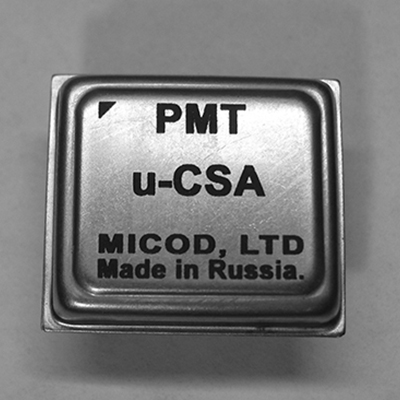

Universal charge-sensitive amplifier for PMTs, neutron detectors, photon counters, and related detector applications.
Input polarity: positive or negative;
Selectable output polarity;
Internal or external feedback;
Adjustable DC output offset;
Dimensions: 22 × 19 × 5 mm;
Supply voltage range: ±5 V to ±15 V.

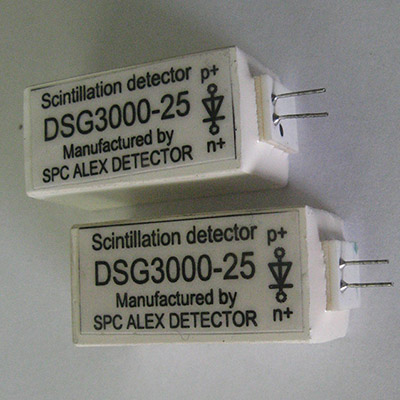

Scintillator-photodiode detector manufactured by AlexDetector.
Scintillator: CsI(Tl), 10 × 10 × 30 mm³;
Photodiode: PIN photodiode with a 25 mm² active area.

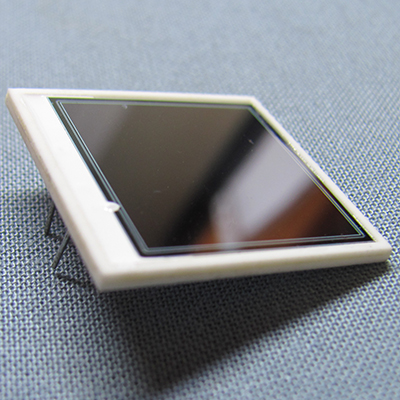

Silicon alpha-particle detector manufactured by AlexDetector.
Active area: 400 mm²;
Ceramic frame package;
Case dimensions: 26.3 × 24.5 mm.

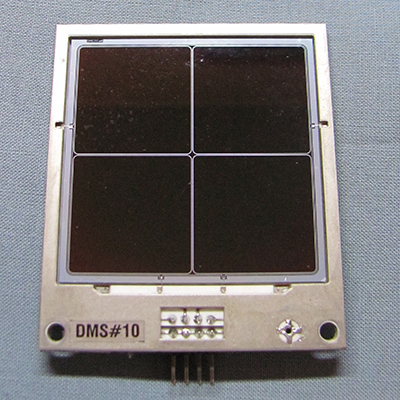

Large-area silicon alpha-particle detector manufactured by AlexDetector.
Active area: 2500 mm² (4 × 625 mm²);
Ceramic frame package;
Case dimensions: 61 × 71 mm.

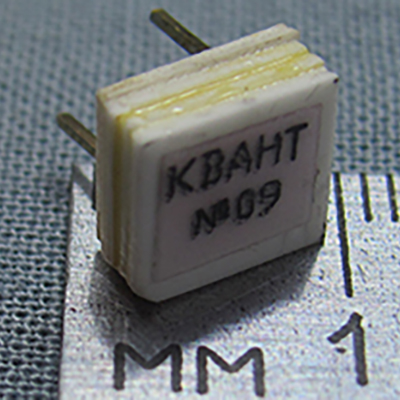

Compact silicon detector manufactured by AlexDetector.
Active volume: 1 mm³;
Case dimensions: 8 × 7 × 4 mm.

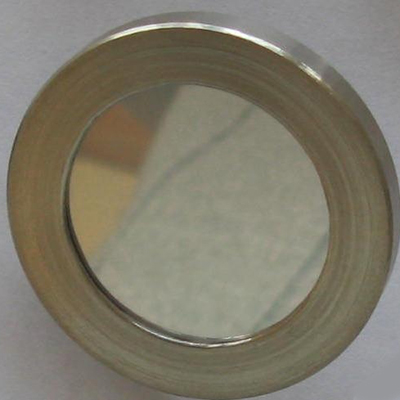

Silicon alpha-particle detector manufactured by AlexDetector.
Made to order (MTO).
Active area: 500 mm²;
Case diameter: 36.5 mm.

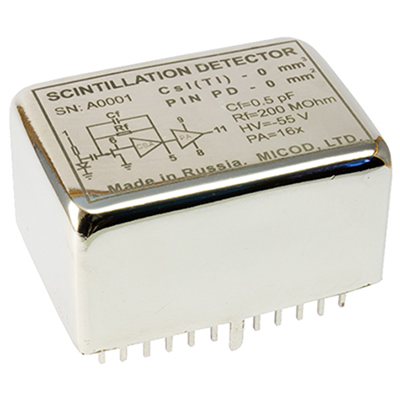

OEM scintillator-photodiode detector with an integrated CSA.
DISCONTINUED
Scintillator: CsI(Tl), 10 × 10 × 10 mm³ or 10 × 10 × 25 mm³;
Photodiode active area: 25 mm² or 100 mm²;
Integrated amplifier: CSA-250;
Dimensions: 35 × 25 × 19 mm.
